| Supported graphics resolutions: | 4096 x 2160 |
| Operating temperature (t-t): | -10 - 80 |
| Maximum resolution: | 4096 x 2160 |
| Cable length: | 3 |
| Vendor homepage: | https://www.lindy.co.uk/cables-adapters-c1/audio-video-c107/3m-high-speed-hdmi-cable-black-line-p11146 |
| Unit box width: | 0.23 |
| Unit box length: | 0.255 |
| Unit box height: | 0.02 |
| Certification: | RoHS, REACH, UL |
| Description: | From the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line High Speed HDMI cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32 channel audio and DolbyĀ® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 15m.
Black Line HDMI cables are available in lengths from 0.5m to 15m. - Entry level High Speed HDMI 2.0 cable for home and small office applications
- Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 8bit
- Robust PVC housing, nickel connectors, gold flashe
|
| Connector 1 dimensions (wxdxh): | 19.2 x 34.1 x 10.6 |
| Units per shipping box: | 1 |
| Unit calculated volume: | 0.001173 |
| Unit calculated weight: | 0.141 |
| Connector 2 form factor: | Straight |
| Shield material: | Aluminium |
| Contact material: | Phosphor bronze |
| Hdmi version: | 2.0 |
| Nominal attenuation: | 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB |
| Storage temperature (t-t): | -10 - 80 |
| Connector 1 gender: | Male |
| Connector 2: | HDMI Type A (Standard) |
| Connector 1 form factor: | Straight |
| Data transfer rate: | 18 |
| Hdmi ethernet channel: | Jā |

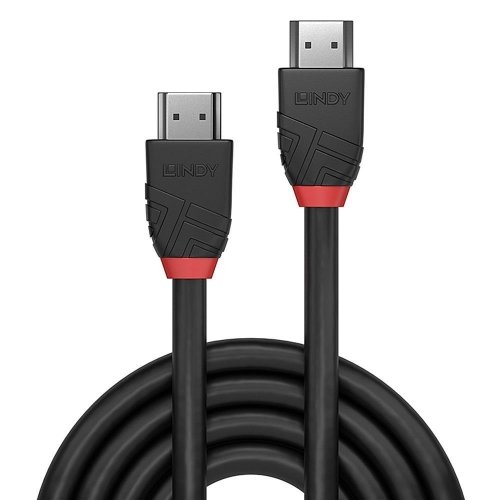

| Summary: | Lindy 3m High Speed HDMI Cable, Black Line. Cable length: 3 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, Maximum resolution: 4096 x 2160 pixels, Data transfer rate: 18 Gbit/s, Product colour: Black |
| Connector 2 gender: | Male |
| Connector contacts plating: | Gold |
| Connector housing material: | Polyvinyl chloride (PVC) |
| Connector material: | Nickel |
| Cable diameter: | 6 |
| Product colour: | Black |
| Awg wire size: | 30 |
| Bending radius (min): | 60 |
| Cable jacket material: | Polyvinyl chloride (PVC) |
| Cable material: | Copper-clad steel (CCS) |
| Cable type: | Round cable |
| Colour depth: | 8 |
| Colour sampling: | 4:4:4 |
| Connector 1: | HDMI Type A (Standard) |
| Connector 2 dimensions (wxdxh): | 19.2 x 34.1 x 10.6 |
| Package type: | Polybag |
| Quantity per pack: | 1 |
| Harmonized system (hs) code: | 84733080 |
