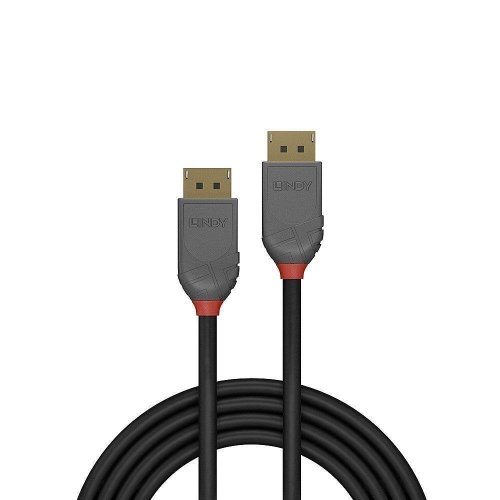

| Description: | From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@144Hz 4:2:2 10bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.
Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m. - Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations
- Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit including 4K 4096x2160@144Hz 4:
|
| Cable length: | 1 |
| Vendor homepage: | https://www.lindy.co.uk/cables-adapters-c1/audio-video-c107/1m-displayport-1-4-cable-anthra-line-p11070 |
| Units per shipping box: | 1 |
| Unit calculated volume: | 0.0005256 |
| Unit calculated weight: | 0.09 |
| Storage temperature (t-t): | -25 - 85 |
| Certification: | RoHS, REACH, UL |
| Bend radius (min): | 58.4 |
| Unit box width: | 0.145 |
| Unit box length: | 0.145 |
| Unit box height: | 0.025 |
| Operating temperature (t-t): | -20 - 80 |
| Summary: | Lindy 1m DisplayPort 1.4 Cable, Anthra Line. Cable length: 1 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Certification: RoHS, REACH, UL. Cable diameter: 7.3 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm. Package type: Polybag. Quantity per pack: 1 pc(s) |
| Awg wire size: | 28 |
| Cable material: | Tinned copper |
| Cable shielding: | Copper |
| Cable type: | Round cable |
| Colour sampling: | 4:2:2 |
| Connector 1: | DisplayPort |
| Connector 1 form factor: | Straight |
| Cable diameter: | 7.3 |
| Connector 1 dimensions (wxdxh): | 21 x 38.9 x 13.6 |
| Connector 2 dimensions (wxdxh): | 21 x 38.9 x 13.6 |
| Package type: | Polybag |
| Quantity per pack: | 1 |
| Harmonized system (hs) code: | 84733080 |
| Connector 1 gender: | Male |
| Connector 2: | DisplayPort |
| Connector 2 form factor: | Straight |
| Connector 2 gender: | Male |
| Connector contacts plating: | Gold |
| Connector housing material: | Acrylonitrile butadiene styrene (ABS) |
| Connector material: | Gold |
| Contact material: | Phosphor bronze |
| Data transfer rate: | 32.4 |
| Displayport version: | 1.4 |
| Jacket material: | Polyvinyl chloride (PVC) |
| Maximum refresh rate: | 60 |
| Maximum resolution: | 7680 x 4320 |
| Nominal attenuation: | 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB |
| Plug and play: | Jā |
| Product colour: | Black/Grey |
| Supported graphics resolutions: | 4096 x 2160/7680 x 4320 |
