| Storage temperature (t-t): | 0 - 70 |
| Operating temperature (t-t): | 0 - 60 |
| Conductor material: | Tinned copper |

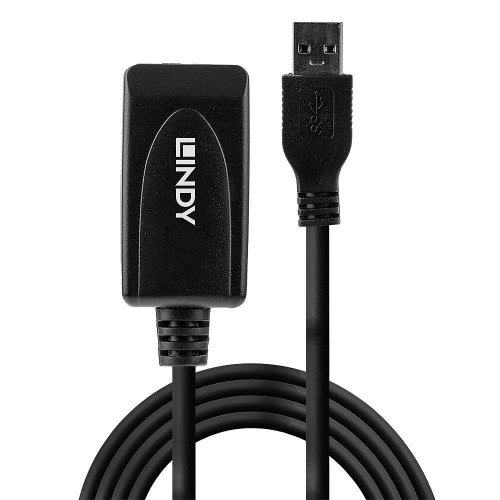

| Description: | The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 5m whilst continuing to support data transfer rates of up to 5Gbps.
With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers.
It is certified by Google to provide a long distance active connection between the ASUS Chromebox and USB camera in a Google Hangouts Meet hardware installation, perfect for use in boardrooms and other video conferencing scenarios.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C h |
| Connector 1: | USB A |
| Connector 1 form factor: | Straight |
| Connector 2 form factor: | Straight |
| Connector 2 gender: | Female |
| Connector contacts plating: | Gold |
| Units per shipping box: | 1 |
| Unit box length: | 0.135 |
| Unit box width: | 0.135 |
| Vendor homepage: | https://www.lindy.co.uk/usb-c4/5m-usb-3-0-active-extension-p515 |
| Connector 1 dimensions (wxdxh): | 16 x 48 x 6 |
| Unit box height: | 0.03 |
| Cable length: | 5 |
| Connector 1 gender: | Male |
| Connector 2: | USB A |
| Unit calculated weight: | 0.24 |
| Unit calculated volume: | 0.0005468 |
| Usb version: | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector housing material: | Plastic |
| Product colour: | Black |
| Summary: | Lindy 5m USB 3.0 Active Extension. Cable length: 5 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Connector contacts plating: Gold, Product colour: Black |
| Certification: | CE, UKCA, FCC, RoHS, REACH |
| Quantity per pack: | 1 |
| Bend radius (min): | 55 |
| Cable diameter: | 5.5 |
| Connector 2 dimensions (wxdxh): | 24 x 46 x 12 |
| Weight: | 220 |
| Awg wire size: | 28/24 |
| Cable jacket material: | Polyvinyl chloride (PVC) |
| Maximum data transfer rate: | 5000 |
| Nominal attenuation: | 1.5dB/[email protected]
5.0dB/[email protected]
7.5dB/[email protected]
25dB/[email protected] |
| Connector material: | Gold |
| Connector shield material: | Aluminium |
| Connector shielding: | Jā |
| Contact material: | Brass |
| Transmission medium: | Twisted pair |
| Package weight: | 289 |
| Package width: | 237 |
| Package type: | Blister |
| Package height: | 138 |
| Package depth: | 60 |
| Harmonized system (hs) code: | 84733080 |
| Model name: | 5m USB 3.0 Active Extension |
| Cable type: | Round cable |
