| Units per shipping box: | 1 |
| Unit calculated volume: | 0.04539 |
| Unit calculated weight: | 21.2 |
| Products per master (outer) case: | 1 |

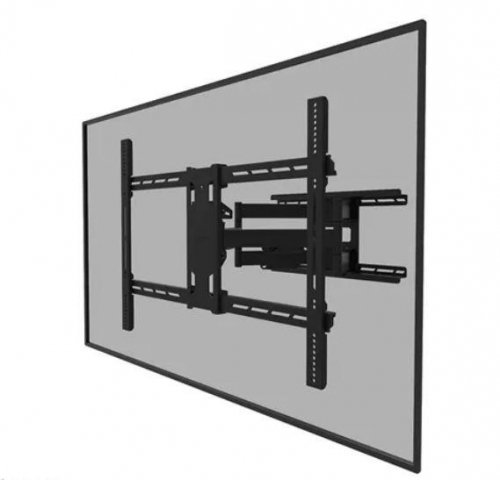

| Description: | The Neomounts WL40S-950BL18 is a full motion heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 125 kg. The versatile tilt (20°) and swivel (90°) technology allows you to create the optimum viewing angle. Level adjustment is available for the perfect installation.
The WL40S-950BL18 has a depth of 8,2-70 cm and is suitable for screens that meet VESA hole pattern 300x200 to 800x600 mm. For extra-large VESA patterns (800x600 to 1200x900), the optional VESA adapter set AWLS-950BL1 is available.
The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. To ensure easy installation, the wall mount is packed pre-assembled and a separate spirit level tool, as well as a fixing template, is included with the wall mount. The mount is equipped with high quality steel cable management to secure any loose cables at the back of the screen. |
| Model: | WL40S-950BL18 |
| Vendor homepage: | https://www.neomounts.com/default.asp?pageid=44&artdetail=WL40S-950BL18 |
| Unit box height: | 0.455 |
| Unit box length: | 0.95 |
| Unit box width: | 0.105 |
| Product colour: | Black |
| Height adjustment range: | 0 - 10 |
| Products per pallet (eu): | 20 |
| Mounting type: | Wall |
| Master (outer) case width: | 450 |
| Distance to the wall (min): | 82 |
| Height adjustment: | Jā |
| Maximum screen size: | 110 |
| Maximum vesa mount: | 800 x 600 |
| Maximum weight capacity: | 125 |
| Maximum weight capacity (per display): | 125 |
| Minimum screen size: | 55 |
| Minimum vesa mount: | 300 x 200 |
| Master (outer) case height: | 950 |
| Depth (max): | 82 |
| Angle of rotation: | 6 |
| Cable management: | Jā |
| Distance to the wall (max): | 703 |
| Warranty period: | 5 |
| Depth: | 82 |
| Housing material: | Steel |
| Pivot angle: | -3 - 3 |
| Rotating: | Jā |
| Swivel angle range: | -45 - 45 |
| Swivelling: | Jā |
| Tilt adjustment: | Jā |
| Tilt angle range: | -5 - 15 |
| Accepts padlock: | No |
| Master (outer) case gross weight: | 22000 |
| Harmonized system (hs) code: | 7326909890 |
| Height: | 630 |
| Weight: | 20400 |
| Width: | 880 |
| Package depth: | 100 |
| Package height: | 950 |
| Package weight: | 22000 |
| Package width: | 450 |
| Summary: | Neomounts WL40S-950BL18 Heavy duty wall mount 55-110" - full motion. Maximum weight capacity: 125 kg, Minimum screen size: 139.7 cm (55"), Maximum screen size: 2.79 m (110"), Minimum VESA mount: 300 x 200 mm, Maximum VESA mount: 800 x 600 mm. Height adjustment range: 0 - 10 mm, Tilt angle range: -5 - 15°, Swivel angle range: -45 - 45°, Angle of rotation: 6°, Distance to the wall (min): 8.2 cm, Distance to the wall (max): 70.3 cm. Product colour: Black |
| Number of displays supported: | 1 |
| Panel mounting interface: | 300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/440 x 400/600 x 200/600 x 300/600 x 400/600 x 500/600 x 600/680 x 300/800 x 200/800 x 400/800 x 500/800 x 600 |
| Country of origin: | China |
| Mounting kit: | Jā |
| Package net weight: | 22000 |
| Master (outer) case net weight: | 20400 |
| Master (outer) case length: | 100 |
| Lockable: | Not lockable |
