| Package width: | 326 |
| Panel mounting interface: | 100 x 100/75 x 75 |
| Vendor homepage: | https://www.neomounts.com/default.asp?pageid=44&artdetail=NM-D335D4BLACK |

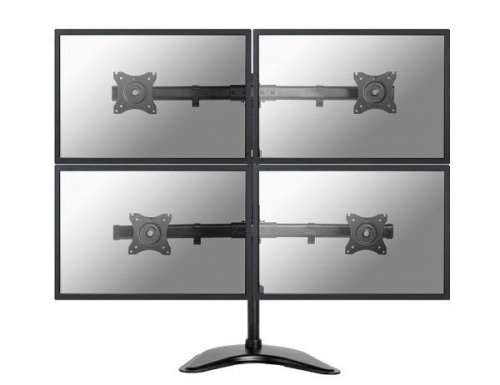

| Description: | The Neomounts desk mount, model NM-D335D4BLACK is a tilt-, swivel and rotatable desk mount for 4 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp, desk stand or desk grommet.
Neomounts versatile tilt (90°), rotate (360°) and swivel (30°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 80 centimetres.An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts NM-D335D4BLACK has one pivot point and is suitable for 4 screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avo |
| Master (outer) case height: | 340 |
| Units per shipping box: | 1 |
| Unit calculated volume: | 0.02094 |
| Unit calculated weight: | 9.9 |
| Unit box height: | 0.33 |
| Unit box length: | 0.47 |
| Unit box width: | 0.135 |
| Products per master (outer) case: | 2 |
| Products per pallet (eu): | 36 |
| Master (outer) case net weight: | 19800 |
| Master (outer) case width: | 475 |
| Master (outer) case length: | 280 |
| Country of origin: | China |
| Harmonized system (hs) code: | 7326909890 |
| Master (outer) case gross weight: | 21600 |
| Housing material: | Steel |
| Product colour: | Black |
| Depth: | 80 |
| Height: | 810 |
| Weight: | 8380 |
| Package depth: | 132 |
| Package height: | 460 |
| Package weight: | 9900 |
| Cncode: | 83021000 |
| Distance to the wall (max): | 80 |
| Maximum screen size: | 27 |
| Maximum vesa mount: | 100 x 100 |
| Desk thickness (max): | 90 |
| Summary: | Neomounts NM-D335D4BLACK Monitor stand 10-27". Mounting: Clamp/Freestanding/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -15 - 15°, Tilt angle range: -45 - 45°. Product colour: Black |
| Maximum weight capacity: | 8 |
| Maximum weight capacity (per display): | 8 |
| Minimum screen size: | 10 |
| Minimum vesa mount: | 75 x 75 |
| Mounting: | Clamp/Freestanding/Grommet |
| Mounting type: | Desk |
| Number of displays supported: | 4 |
| Angle of rotation: | 360 |
| Depth adjustment range: | 0 - 80 |
| Height adjustment: | Jā |
| Height adjustment range: | 0 - 810 |
| Height adjustment type: | Manual |
| Pivot angle: | -180 - 180 |
| Rotating: | Jā |
| Swivel angle: | 30 |
| Swivel angle range: | -15 - 15 |
| Swivelling: | Jā |
| Tilt adjustment: | Jā |
| Tilt angle range: | -45 - 45 |
