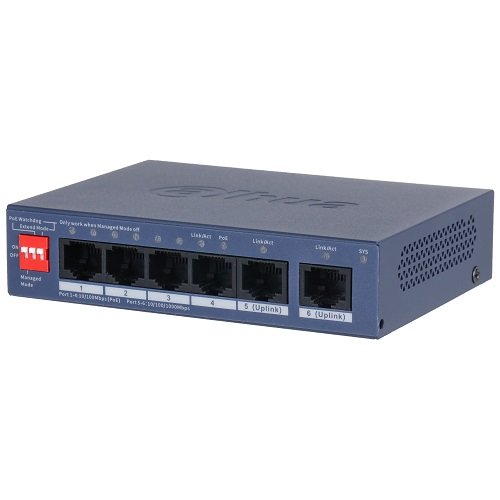

Dahua technology co., ltd PoE switch 100Mbps 4+2G uplink CS4006-4ET2GT-36

6-Port Cloud Managed Desktop Switch with 4-Port PoE

Overview:

Cloud Managed Switch is a layer-2 switch that has a long-distance PoE function. It can supply power to devices up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Devices can be managed through the DoLynk Care app and performs real-time monitoring of the network. The app also displays the status of devices, triggers alarms for errors in real time and sends notifications. The DoLynk Care app is developed based on DoLynk Care Cloud Server. The Switch is applicable for use in a wide variety of scenarios, such as in homes, factories and offices. Model: CS4006-4ET2GT-36.

Functions:

• Meets the requirements of IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab standards.
• Meets the requirements of IEEE802.3af, IEEE802.3at power supply standards.
• Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
• A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.


Technical Specification:

Included Power Adapter: Yes.
Switching Capacity: 4.8 Gbps.
Packet Forwarding Rate: 3.57 Mpps.
Description of Function Slots: Port 1-4: 4x RJ–45 10/100 Mbps; Port 5-6: 2x RJ-45 10/100/1000 Mbps (uplink).
PoE: Yes.
Power Supply: External power supply: 53 VDC, 0.8 A.
Operating Temperature: –10°C to +55°C.
Operating Humidity: 5%–95% (RH), non-condensing.
Storage Temperature –40°C to +70°C.
Storage Humidity 5%–95% (RH), non-condensing.
Power Consumption Idling: <3 W; Full load: 42.4 W.
MTBF: 232.62 years.
Packet Buffer Size: 4 Mbit.
MAC Table Size: 2K.
PoE Protocol: IEEE802.3af; IEEE802.3at.
Communication Standard: IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab.
PoE Power: Port 1-4 < 30 W; Total < 40 W.
PoE Power Consumption Management: Yes.
PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8(V–).
Long Distance PoE Transmission: Yes.
Statics Protection: Air discharge: 8 kV; Contact discharge: 6 kV.
Lighting Protection: Common mode: 6 kV; Differential mode: 0 kV.
Weight: 0.19 kg.
Product Dimensions: 115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06")
DIP switch: Yes.
Reset button: 1.
VLAN Function: Port-based VLAN.
VLAN Number: 32.
DHCP Function: DHCP Client.
Equipment Management: Web management; App management; Cloud Management.
