| Maximum memory card size: | 256 |
| Description: | Launched by Dahua Technology, Dahua WizMind is a full portfolio of
solutions composed of project-oriented products including IPC, NVR,
PTZ, XVR, Thermal and software platform which adopts industry-leading
deep learning algorithms. Focusing on customer's requirements,
WizMind provides precise, reliable and comprehensive AI solutions for
verticals.

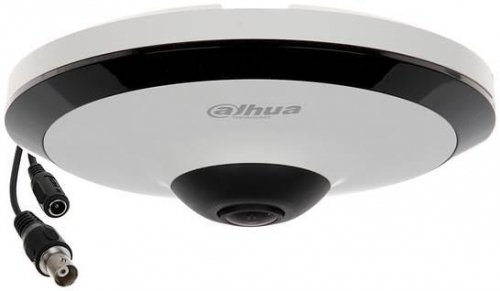

With fisheye lens, Dahua Fisheye series camera can realize 360Ā°
surveillance, and it is widely applied in various scenes such as airports,
shopping centers, banks and hotels.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Heat Map
Duhua heat map technology is used to display the crowd density and
people appearance probability. Display the crowd status by different
colors. Generally, t |
| Vendor homepage: | https://www.dahuasecurity.com/products/ |
| Day/night mode: | Jā |
| Management software: | Smart PSS, DSS, DMSS |
| Internal memory: | 512 |
| Audio formats supported: | G.726/PCM |
| Product colour: | Black/White |
| Power consumption (typical): | 3.6 |
| Alarm output channels: | 1 |
| Mounting type: | Ceiling/wall |
| Housing material: | Metal/Plastic |
| Power consumption (power over ethernet (poe)): | 4.4 |
| Summary: | Dahua Technology WizMind IPC-EW5541P-AS. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Housing material: Metal, Plastic. Minimum illumination: 0.006 lx, Lens viewing angle, horizontal: 180Ā°, Lens viewing angle, vertical: 180Ā°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 2592 x 1944 pixels. Detect distance: 28 m, Observe distance: 11.2 m, Recognize distance: 5.6 m |
| Card reader integrated: | Jā |
| Compatible memory cards: | MicroSD (TransFlash) |
| Diameter: | 126.2 |
| Height: | 44.6 |
| Weight: | 299 |
| Signal-to-noise ratio (snr): | 56 |
| Intelligent video surveillance (ivs) system features: | Heat map/Intrusion/Tripwire |
| Minimum illumination: | 0.006 |
| Unit box width: | 0.16 |
| Unit box length: | 0.16 |
| Unit box height: | 0.14 |
| Units per shipping box: | 1 |
| Unit calculated volume: | 0.003584 |
| Unit calculated weight: | 0.488 |
| Supported video modes: | 720p |
| Total megapixels: | 5 |
| Video compression formats: | H.264/H.264B/H.264H/H.265 |
| Video motion detection: | Jā |
| Number of users: | 20 |
| Supported network protocols: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Video formats supported: | H.264+/H.265+ |
| Power source type: | DC,PoE |
| Operating relative humidity (h-h): | 0 - 95 |
| Operating temperature (t-t): | -10 - 50 |
| Storage temperature (t-t): | -40 - 60 |
| Dc output voltage: | 12 |
| Power consumption (max): | 7.8 |
| Web browser: | Jā |
| Ethernet lan: | Jā |
| Number of effective pixels (h x v): | 2592 x 1944 |
| Rom capacity: | 128 |
| Alarm input channels: | 1 |
| Certification: | CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Package weight: | 411 |
| Lens viewing angle, vertical: | 180 |
| Lens viewing angle, horizontal: | 180 |
| Connectivity technology: | Wired |
| Dynamic range: | 120 |
| Placement supported: | Indoor & outdoor |
| Type: | IP security camera |
| Wide dynamic range (wdr): | Jā |
| Adjustment shutter speed: | Auto/Manual |
| Camera shutter speed: | 1/3 -1/100000 |
| Lens viewing angle, diagonal: | 180 |
| Mobile operating systems supported: | Android/iOS |
| Audio input channels: | 1.0 |
| Audio output channels: | 1.0 |
| Built-in microphone: | Jā |
| Number of sensors: | 1 |
| Optical sensor size: | 1/2.7 |
| White balance: | Auto/Manual/Natural/Outdoor/Street lamp |
| Progressive scan: | Jā |
| Sensor type: | CMOS |
| Closest focusing distance: | 2 |
| Detect distance: | 28 |
| Focal length range: | 1.4 |
| Identify distance: | 2.8 |
| Maximum aperture number: | 2 |
| Number of lenses: | 1 |
| Observe distance: | 11.2 |
| Recognize distance: | 5.6 |
| Led type: | IR |
| Night vision: | Jā |
| Night vision distance: | 10 |
| Number of illumination leds: | 3 |
| Back light compensation (blc): | Jā |
| Bit rate: | H.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbps |
| Bit rate control: | Constant Bit Rate (CBR),Variable Bit Rate (VBR) |
| Frame rate: | 30 |
| Highlight compensation (hlc): | Jā |
| Maximum resolution: | 2592 x 1944 |
| Noise reduction: | Jā |
| Noise reduction technology: | 3D noise reduction |
| Privacy masking: | Jā |
| Region of interest (roi) encoding: | Jā |
| Supported graphics resolutions: | 1280 x 720 (HD 720)/1280 x 960/1600 x 1200 (UXGA)/2048 x 1536 (QXGA)/2592 x 1944/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576 |
| Number of cameras: | 1 |
