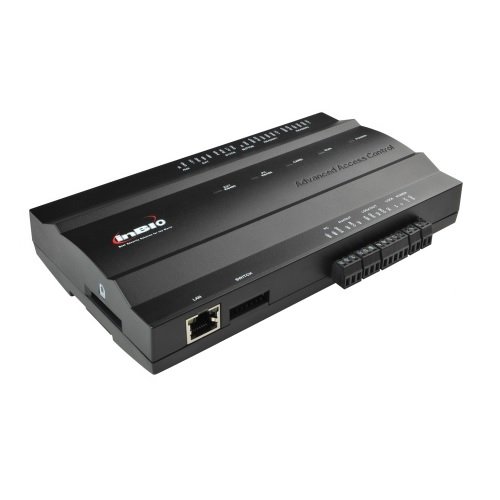

Zkteco europe s.r.l ZKTECO Single Door Biometric Access Controller INBIO160

Single door biometric access control panel
Features:
An access controller with unique features such as fingerprint verification and advanced access control functions that can be controlled via TCP/IP over LAN or WAN networks.
The distance between the controller and RS485 readers could be more than 800m.
Data is preserved if power is lost. Controller continues to operate if network connection is interrupted.
Online control helps to know about local events on the e-map and to display video remotely in real time.
By connecting an RS485 reader, the controller can authenticate users with several verification modes such as fingerprint, card and password to provide a higher level of security.


Technical specification:
Card holders capacity: 30.000.
Event database capacity: 100.000.
Fingerprint capacity: 3.000.
Number of supported doors: 1.
Number of readers supported readers: 4 (2x RS-485 readers, 2x Wiegand 26bit).
Reader types: 26bit Wiegand, RS-485 FR series.
Number of inputs: 3 (exit button, door sensor, aux input).
Number of outputs: 2 (1x for lock and 1x aux output.)
Communication: TCP/IP; RS-485.
Processor: 400MHz 32bit CPU.
Memory: RAM 32MB / Flash 128MB.
Power supply: 9.6V-14.4V DC.
Weight: 3.6 kg.
Mounting: wall mount.
Dimensions: 350x90x300 mm.
Operating temp: 0°C~ +45°C.
Operating humidity: 20%-80%RH.


Warranty: 24 months.
