| Bearing type: | Fluid Dynamic Bearing (FDB) |
| Vendor homepage: | https://www.xilence.net/en/power-supplies/223 |
| Model: | XC081 |
| Model name: | M906 |
| Number of fans: | 1 |

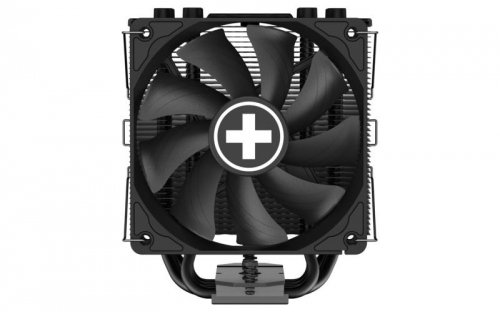

| Description: | Our new flag ship in the field of air cooling from the performance X series - the M906
It has six extremely powerful black heat pipes, which dissipate 250W of waste heat to the countless cooling fins and thus predestine it for potent multi-core processors.
Due to the direct contact of the heat pipes, the heat transfer between CPU and cooler is extremely efficient and very even. The multi-socket means that the cooler can be used on all current Intel and AMD sockets.
In addition to the double heat sink and the PWM-controlled 120mm FDB Xilent fan, the scope of delivery includes a holding module for the LGA1700/1954/2066/2011/1151/1150/1155/1851/1156/1200 and AMD AM4/AM5, illustrated assembly instructions and a tube of thermal paste. - Elegant black design with top cover
- One heat sink with lamellar design ensure efficient cooling of the CPU and all surrounding components
- One black 120mm FDB/PWM Xilent fan, liquid-stored
- six 6mm copper heat pipes for maxi
|
| Fan diameter: | 120 |
| Unit box height: | 0.22 |
| Unit box length: | 0.61 |
| Unit box width: | 0.0425 |
| Units per shipping box: | 8 |
| Unit calculated volume: | 0.005704 |
| Unit calculated weight: | 1.39 |
| Thermal design power (tdp): | 250 |
| Pulse-width modulation (pwm) support: | Jā |
| Units per pallet: | Nav |
| Noise level (high speed): | 30.8 |
| Noise level (low speed): | 18 |
| Quantity per pack: | 1 |
| Supported processor sockets: | LGA 1150 (Socket H3)/LGA 1151 (Socket H4)/LGA 1155 (Socket H2)/LGA 1156 (Socket H)/LGA 1200 (Socket H5)/LGA 1700/LGA 1851/LGA 1954/LGA 2011 (Socket R)/LGA 2066/Socket AM4/Socket AM5 |
| Rotational speed (max): | 1500 |
| Rotational speed (min): | 500 |
| Suitable location: | Processor |
| Summary: | Xilence Performance A+ XC081. Type: Air cooler, Fan diameter: 12 cm, Rotational speed (min): 500 RPM, Rotational speed (max): 1500 RPM, Bearing type: Fluid Dynamic Bearing (FDB). Width: 106 mm, Depth: 129 mm, Height: 154 mm. Product colour: Black |
| Package weight: | 900 |
| Weight: | 905 |
| Width: | 106 |
| Type: | Air cooler |
| Base plate material: | Copper |
| Fan connector: | 4-pin |
| Fins material: | Aluminium |
| Material: | Aluminium |
| Number of fins: | 45 |
| Number of heat pipes: | 6 |
| Product colour: | Black |
| Rated voltage: | 12 |
| Cable length: | 0.44 |
| Depth: | 129 |
| Fan dimensions (w x d x h): | 120 x 120 x 25 |
| Height: | 154 |
| Cncode: | 84145925 |
