| Vendor homepage: | https://www.xilence.de/en/products/power-supplies/redwing-series/xn050.html |
| Description: | Description
The latest generation of Redwing power supplies combines an exciting design with modern technology and top quality. In the current revision, the power supply series has been completely revised and adapted to the demands of today's computer systems. The result not only convinces through its efficient technic, but with its modern design and high stability. The connections have been coordinated to current systems and four integrated safety circuits always ensure safe operation.
Product Features - Powerful: Optimal performance in every situation - Whisper-Silent Cooling: 1x 120mm fan - Reliable: Maximum stability at all time - The following safety features: OVP (Over Voltage Protection) UVP (Under Voltage Protection) SCP ( Short Circuit Protection) OLP (Over Load Protection) |
| Unit box height: | 0.1 |
| Unit box width: | 0.165 |
| Unit box length: | 0.23 |
| Fan location: | Top |
| Number of fans: | 1 |
| Sata power cable length: | 650 |
| Power supply unit (psu) form factor: | ATX |
| Purpose: | PC |
| Cooling type: | Active |
| Fan diameter: | 120 |
| Unit calculated weight: | 1.54 |
| Unit calculated volume: | 0.004259 |
| Units per shipping box: | 10 |
| Product colour: | Black |
| Max output current (+3.3v): | 14 |
| Max output current (+5v): | 15 |
| Max output current (+5vsb): | 2 |
| Max output current (-12v): | 0.5 |
| Power protection features: | Over voltage/Overload/Short circuit/Under voltage |

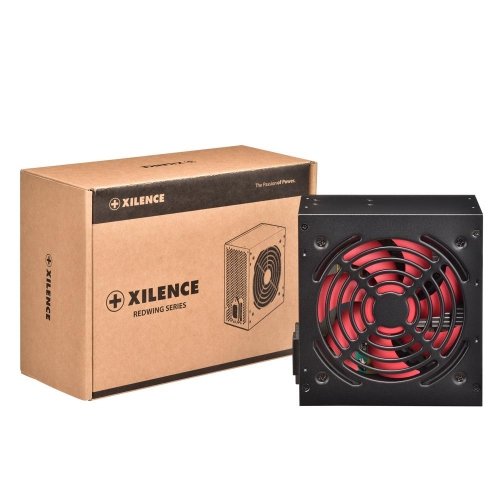

| Summary: | Xilence XP350R7. Total power: 350 W, AC input voltage: 200 - 240 V, Max output current (+3.3V): 14 A. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 45 cm, SATA power cable length: 650 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm |
| Ac input voltage: | 200 - 240 |
| Max output current (+12v): | 20 |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Total power: | 350 |
| Atx power connector (20+4 pin): | Jā |
| Cabling type: | Non-Modular |
| Cpu p4 connector (4-pin): | 1 |
| Motherboard power cable length: | 450 |
| Motherboard power connector: | 24-pin ATX |
| Number of sata power connectors: | 1 |
| Peripheral (molex) power cable length: | 650 |
| Units per pallet: | Nav |
