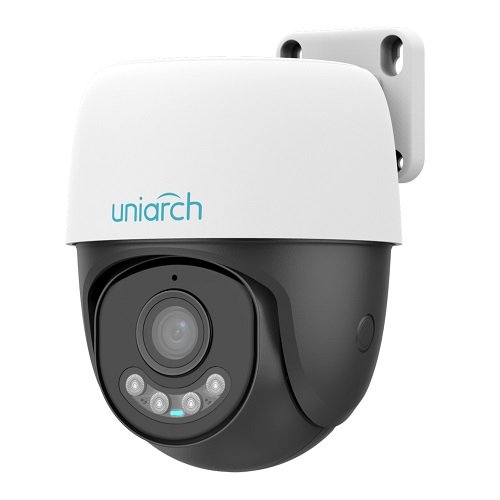

Uniview UNIARCH 3MP HD Outdoor Pan & Tilt Wi-Fi Camera

IP66 PT outdoor IP dome camera, for home, office or small shop security and peace of mind. It features 3MP resolution, two-way talk, LED illumination up to 10 meters and reliable night vision up to 30 meters. Remote access via Wi-Fi, data recording to an SD card up to 512GB.

Features:
PT (Pan and Tilt) camera can rotate horizontally up to 345°, tilt vertically up to 90° to cover all angles and leave no blind spots.
Infrared filter with automatic switch (ICR) allows clear night vision up to 30 meters away.
Sound and light alert are supported, making warning and alarm signals more noticeable.
2.4GHz Wi-Fi connection is used.
Motion detection, sound detection and human detection are supported. Supports automatic tracking.
Built-in speaker and microphone allow you to communicate remotely with visitors.
Data storage: supports micro SD(TF) card up to 512GB (card not included).
The front face is made of grapheme, which has better heat dissipation and more environmental protection.
The package includes: power adapter, mounting bracket and mounting screw set.
Note: SD card is purchased separately.


Technical specifications:
Sensor: 1/3" 3MP CMOS.
Scanning System: Progressive.
Lens: 4mm F1.6.
IRIS: Fixed.
Field of View: 90.5° (horizontal).
Max Resolution: 2304x1296 pixels.
LED (warm light) illumination: up to 10m.
IR illumination: up to 30m.
IR Wavelength: 850 nm.
IR ON/OFF control: Auto / Manual.
Electronic Shutter: Auto / Manual, 1 ~ 1/100000s.
Day/Night Mode: auto-switch ICR, IR-cut filter.
Min. Illumination: 0.005 lux (Colour, F1.6, AGC On); 0 lux (IR on).
Pan Range: 0–345°.
Tilt Range: 0–90°.
Pan/Tilt speed: (Pan) 1°/s ~ 40°/s; (Tilt) 1°/s ~ 30°/s.
Presets: 20.
Video Compression: Ultra 265, H.265, H.264.
Frame rate: Main stream: 3MP(2304x1296)@20fps; Sub stream: (640x360)@20fps.
Video Bitrate: 128 Kbps ~ 2048 Kbps.
WDR (Wide Dynamic Range): DWDR.
Digital zoom: 4X.
S/N Ratio: >52dB.
ROI: Up to 8 regions.
Privacy Masking: only supported by NVR.
Noise Reduction: 2D/3D DNR.
White Balance: Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto 2
Defog: Digital Defog.
Basic Detection: Motion detection, human detection, audio detection.
Auto-Tracking: Supported.
Audio Compression: G.711U, G.711A.
Audio Bitrate: 64 Kbps.
Built-in Microphone and Speaker.
Two-Way Audio: Supported.
Suppression: Supported.
MicroSD Slot: Supports up to 512GB.
Wireless: 2.4GHz (up to 2.4835 GHz) Wi-Fi (IEEE802.11b/g/n), built-in antenna.
Network Protocols: IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP.
Transmission rate: 802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 150 Mbps.
Encryption: 64/128-bit WEP, WPA-PSK/ WPA2-PSK.
Supported Browsers: IE 10+, Chrome 45+, Firefox 52+, Edge 79+.
Network Port: 1 x RJ45 10M/100M Base-TX Ethernet.
Power Interface: Ø5.5 mm coaxial power plug.
Power Supply: DC 12V / 1.0A.
Dimensions: Ø110 x 110mm x 151mm (Ø 4.3”x 4.3”x 6.0”).
Reset Button.
LED Indicator: 1 (red/blue).
Operating Temperature: -30°C ~ +60°C.
Operating Humidity: <95% RH (non-condensing).
Weight: 0.38kg (0.84lb).
Color: White, Black.
Protection class: IP66.
Surge protection: 4 KV.
Certifications: EMC: CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130); FCC (FCC 47 CFR part15 B). RF: FCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311). Safety: CE LVD (EN 62368-1). Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU).


Warranty: 24 months.

Download Datasheet.pdf
