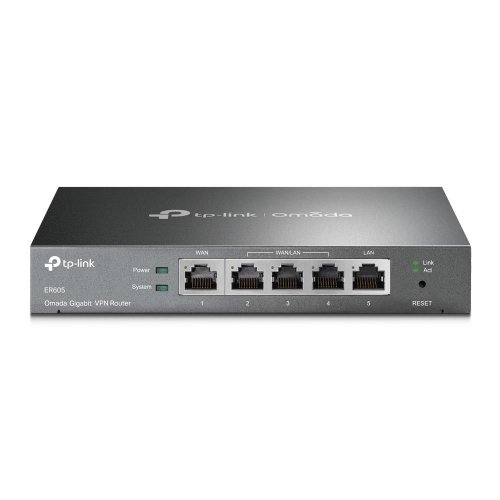

| Description: | Omada Gigabit VPN Router
Professional, Secure, and Reliable Gigabit VPN Router
Omada SDNā€”The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.
Up to Three WAN Gigabit Ports & One USB WAN for Mobile Broadband
Two freely interchangeable ports allow the router to support up to three WAN ports for various Internet access requirements. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Mobile broadband via 4G/3G modem by connecting to the USB port is also supported for WAN backup.
High-Security and High-Performance VPN
ER605 supports IPSec/PPTP/L2TP VPN over IPSec |
| Vendor homepage: | https://www.tp-link.com/us/business-networking/omada-sdn-router/er605/v2/#overview |
| Product model code: | ER605 |
| 3g/4g usb modem compatibility: | No |
| Quick installation guide: | Jā |
| Dhcp client: | Jā |
| Quick start guide: | Jā |
| Operating relative humidity (h-h): | 10 - 90 |
| Ac input voltage: | 120 - 240 |
| Storage relative humidity (h-h): | 5 - 90 |
| Ac input frequency: | 50 - 60 |
| Web-based management: | Jā |
| Compliance certificates: | RoHS |
| Unit calculated weight: | 0.755 |
| Unit calculated volume: | 0.003328 |
| Units per shipping box: | 20 |
| Operating temperature (t-t): | 0 - 40 |
| Power source type: | AC |
| Height: | 25 |
| Reset button: | Jā |
| Vpn support: | 20 IPsec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IKEv1/v2
MD5, SHA1 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect F |
| Usb ports quantity: | 1 |
| Led indicators: | Activity/LAN/System/USB/WAN |
| Rack capacity: | 1U |
| Rack mounting: | Jā |
| Storage temperature (t-t): | -40 - 70 |
| Management protocols: | Telnet |
| Network address translation (nat): | Jā |
| Product colour: | Black |
| Power consumption (typical): | 7.94 |
| Supported protocols: | IPsec/PPTP/L2TP |
| Nat functionality: | One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Dhcp server: | Jā |
| Vpn tunnels quantity: | 20 |
| Supported network protocols: | TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP |
| Arp attack prevention: | Jā |
| Dos attack prevention: | Jā |
| Routing protocols: | RIP-1/RIP-2 |
| Networking standards: | IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x |
| Ethernet interface type: | Gigabit Ethernet |
| Flash memory: | 128 |
| Cabling technology: | 10/100/1000Base-T(X) |
| Ethernet lan data rates: | 10/100/1000 |
| Internal memory: | 256 |
| Internal memory type: | DRAM |
| Vlan support: | Jā |
| Traffic control: | Jā |
| Policy-based routing: | Jā |
| Concurrent connections: | 150000 |
| Security algorithms: | 128-bit AES/192-bit AES/256-bit AES/3DES/DES/MD5/SHA-1 |
| Firewall: | Jā |
| Authentication method: | SHA-1, MD5 |
| Url filtering: | Jā |
| Dmz support: | Jā |
| Summary: | TP-Link Omada Gigabit VPN Router. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Routing protocols: RIP-1, RIP-2, Management protocols: Telnet, Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP. Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, Authentication method: SHA-1, MD5, VPN support: ā€¢ 20 IPsec VPN Tunnels ā€¢ LAN-to-LAN, Client-to-LAN ā€¢ Main, Aggressive Negotiation Mode ā€¢.... Compliance certificates: RoHS. Cables included: AC |
| Manual: | Jā |
| Sim card slot: | No |
| Depth: | 101 |
| Cables included: | AC |
| Dsl wan: | No |
| Ethernet wan: | Jā |
| Ethernet lan (rj-45) ports: | 5 |
| Width: | 158 |
| Universal plug and play (upnp): | Jā |
| System event log: | Jā |
| Units per pallet: | Nav |
| Certification: | CE, FCC, RoHS |
| Linux operating systems supported: | Jā |
| Mac operating systems supported: | MacOS |
| Package width: | 190 |
| Package depth: | 254 |
| Package height: | 60 |
| Package weight: | 650 |
| Windows operating systems supported: | Windows 10/Windows 2000/Windows 7/Windows 8/Windows 8.1/Windows 98SE/Windows NT/Windows Vista/Windows XP |
| Unit box height: | 0.06 |
| Unit box length: | 0.255 |
| Unit box width: | 0.192 |
