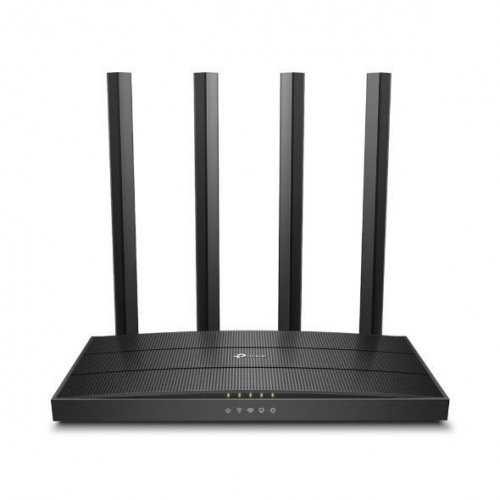

| Model name: | C6 |
| Description: | Smooth Entertainment with AC1200 Dual Band WiFi The Archer C6 creates a reliable and blazing-fast network powered by 802.11ac WiFi technology. The 2.4 GHz band delivers speeds up to 300 Mbps allowing you to email and browse the web, while the 5 GHz band delivers speeds up to 867 Mbps making it ideal for HD video streaming and lag-free online gaming.
5 High-Performance Antennas for WiFi Coverage throughout Your Home Four external antennas and one internal antenna send WiFi signals to every corner of your home. Stay connected and enjoy fast WiFi whether you are lounging on the sofa or on the balcony. With a powerful chipset, the Archer C6 provides ideal WiFi coverage.
Access Point Mode Switch the working mode of the Archer C6 to Access Point Mode to share your wired network with other wireless devices.
MU-MIMO Increases Speed, Throughput, Capacity MU-MIMO enables the Archer C6 to serve multiple devices simultaneously. Say goodbye to ba |
| Vendor homepage: | https://www.tp-link.com/us/home-networking/wifi-router/archer-c6/#overview |
| Unit calculated weight: | 0.787 |
| Units per shipping box: | 10 |
| Unit calculated volume: | 0.008221 |
| Depth: | 117 |
| Height: | 32 |
| Width: | 215 |
| Package depth: | 240 |
| Package height: | 82 |
| Package type: | Box |
| Package weight: | 870 |
| Package width: | 350 |
| Harmonized system (hs) code: | 85176990 |
| Maximum data transfer rate: | 1 |
| Output current: | 1 |
| Output voltage: | 12 |
| Power source type: | AC |
| Operating relative humidity (h-h): | 10 - 90 |
| Operating temperature (t-t): | 0 - 40 |
| Storage relative humidity (h-h): | 5 - 90 |
| Storage temperature (t-t): | -40 - 70 |
| Linux operating systems supported: | Jā |
| Mac compatibility: | Jā |
| Mac operating systems supported: | macOS |
| Windows operating systems supported: | Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 Pro/Windows 10 Pro x64/Windows 7 Enterprise/Windows 7 Enterprise x64/Windows 7 Home Basic/Windows 7 Home Basic x64 |
| Top wi-fi standard: | Wi-Fi 5 (802.11ac) |
| Wi-fi band: | Dual-band (2.4 GHz / 5 GHz) |
| Wi-fi standards: | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| Wlan data transfer rate (first band): | 450 |
| Wlan data transfer rate (max): | 867 |
| Wlan data transfer rate (second band): | 867 |
| 3g/4g usb modem compatibility: | No |
| Dsl wan: | No |
| Ethernet wan: | Jā |
| Sim card slot: | No |
| Wan connection type: | RJ-45 |
| Cabling technology: | 10/100Base-T(X) |
| Ethernet lan: | Jā |
| Ethernet lan data rates: | 10/100 |
| Ethernet lan interface type: | Fast Ethernet |
| Networking standards: | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Port forwarding: | Jā |
| Receiver sensitivity: | 5GHz: 11a 54M: -76dBm
11ac VHT20 MCS8: -70dBm
11ac VHT40 MCS9: -65.5dBm
11ac VHT80 MCS9: -61.5dBm
2.4G: 11g 54M: -76dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71dBm |
| Vpn passthrough: | Jā |
| Vpn support: | PPTP, L2TP, IPSec |
| 3g: | No |
| 4g: | No |
| Dc-in jack: | Jā |
| Ethernet lan (rj-45) ports: | 5 |
| Memory card slot(s): | No |
| Usb port: | No |
| Reset button: | Jā |
| Wps push button: | Jā |
| Dmz support: | Jā |
| Dos attack prevention: | Jā |
| Filtering: | Jā |
| Firewall: | Jā |
| Guest access: | Jā |
| Ip address filtering: | Jā |
| Mac address filtering: | Jā |
| Security algorithms: | 128-bit WEP/64-bit WEP/WPA/WPA2/WPA2-PSK/WPA-PSK |
| Stateful packet inspection (spi): | Jā |
| Dhcp client: | Jā |
| Dhcp server: | Jā |
| Universal plug and play (upnp): | Jā |
| Voip protocols: | IPv4, IPv6 |
| Indication light: | Jā |
| Led indicators: | LAN,Power,WLAN |
| On/off switch: | Jā |
| Product colour: | White |
| Product type: | Tabletop router |
| Ac adapter included: | Jā |
| Cables included: | LAN (RJ-45) |
| Manual: | Jā |
| Quick installation guide: | Jā |
| Quick start guide: | Jā |
| Antenna design: | External |
| Antennas quantity: | 5 |
| Transmit power: | CE: <20dBm(2.4GHz), <23dBm(5GHz) |
| Summary: | TP-Link Archer C6. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK. VoIP protocols: IPv4, IPv6 |
| Units per pallet: | Nav |
| Unit box height: | 0.245 |
| Unit box length: | 0.35 |
| Unit box width: | 0.085 |
