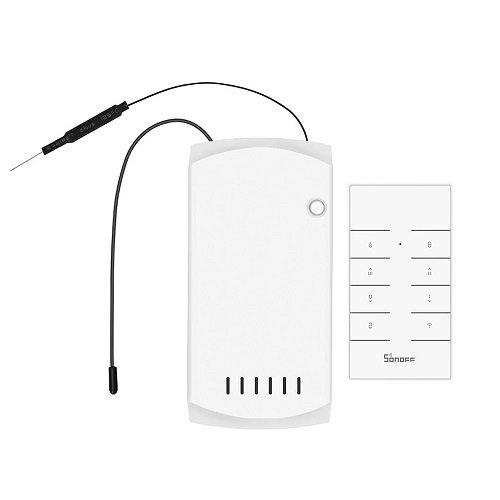

Sonoff iFan04 Smart Ceiling Fan and Light Controller, Wi-Fi/RF

SONOFF iFan04 Smart Ceiling Fan and Light Remote Control Kit, Wi-Fi/RF


Features:
Sonoff iFan04 is designed to control a ceiling fan with lights.
For your convenience, you can control the device via an app on your phone or with RF 433MHz remote controller (RF remote controller included).
IFan04 is also compatible with Amazon Alexa or Google Home voice assistants (sold separately).
You can choose between low, medium and high fan speed (3 speed modes).
This fan and light controller supports all the functions of the Sonoff smart home system: timer, smart scene, device grouping, sync status, share etc.
Schedule for it to turn on and off at daytime or nighttime, or anytime throughout the day, and it will turn on or off automatically. The fan status is shown in real time in the app, so you'll always know when it's on.
The controller has a pairing button, external Wi-Fi and RF antennas.
The RF remote controller operates at RF 433MHz frequency. The modern design of the compact 8-button RF remote makes it easy to control the light and fan.
The remote control is designed to fit RM433-BASE magnetic wall mount by magnetic adsorbtion (the base is sold separately).
Note: Required CR2450 battery for RF controller is NOT inluded.


Technical specification:


iFan04 Controller:
Compatible with: Sonoff RM433R2.
Voltage: AC 100~240V.
Frequency: 50-60Hz.
Fan load max: 2A.
Lighting current max: 3A.
Tungsten lamp load max.: 690W.
LED lamp load max.: 300W.
Wi-Fi frequency: 2.4 GHz.
Wi-Fi standard: IEEE802.11b/g/n.
Works with Amazon Alexa & Google Assistant.
App: eWeLink (Android, iOS).
Dimensions: 116 x 55 x 26 mm.
Housing material: PC V0 (flame-retardant).
Operating temperature: -10°C~40°C.
Humidity: 5%-95% (non-condensing).
Weight: 125g.
Colour: white.
Certifications: CE/ UKCA/ FCC/ RoHS.


Remote controller RM433R2:
Compatible with: Sonoff RM433-BASE; TX series, RF BridgeR2, iFan03 etc.
Frequency: 433MHz.
Transmission distance: 20-30m.
Number of buttons: 8.
Supported battery: 1x 3V model CR2450 (battery not included).
Material: PC.
Safety class: V0.
Dimensions: 87mm x 45mm x 12mm.
Weight: 40g.
Colour: white.
Certificates: CE, RoHS, FCC.


Warranty: 24 months.
