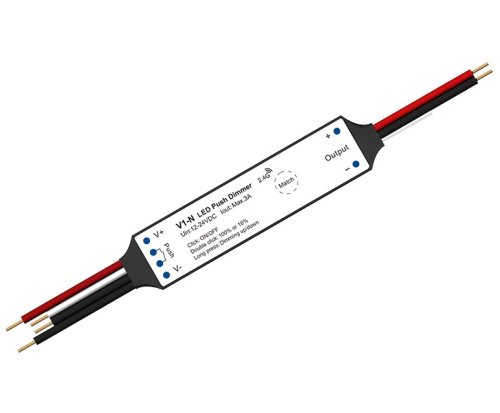

Skydance V1-N Controller, 12-24V, 1x 3A, Push-Dimm

V1-N constant voltage controller 12-24V DC 1x 3A, for single-color LED strips, with Push-Dimm function, 1 channel


Features:
The constant voltage mini controller is suitable for managing constant voltage single-color LED strip up to 5 meters, max output 75W.
It is designed for switching the lighting on/off and dimming. Mini controller enables smooth dimming or brightening with up to 4096 levels from 0 to 100% and is compatible with dimmable LED strips.
The LED dimmer is compatible with RF 2.4 GHz single-zone or multiple zone dimming remote controls. One RF controller can be paired with up to ten remote controls. It features an auto-transmitting function, automatically forwarding the signal to another controller within a 30-meter range. The controller also supports synchronized operation with multiple other controllers.
A pairing button (MATCH) is provided for easy connection with remote controls.
The device uses advanced PWM (Pulse Width Modulation) digital control technology for precise dimming of constant voltage LED lamps.
It features Push-Dimm functionality, allowing connection of a standard momentary (bell-type) switch.
Compact and space-saving, the controller fits directly into a standard wall mounting box behind a regular push switch.
Certified with CE, EMC, RED and RoHS.


Technical specifications:
Product model: V1-N.
Number of channels: 1.
Controlled lighting systems: single-color.
Operating frequency: RF 2.4GHz.
Input voltage: 12V-24V DC.
Output voltage: 12V-24V DC.
Output current: 3A@channel.
Power:max 75W.
PWM frequency: 500Hz.
Grey scale: 4096 levels.
Dimming range: 0-100%.
Dimming curve: logarithmic.
Operating distance: up to 30m (open area).
Protection class: IP20 (non-waterproof).
Certifications: CE, EMC, RoHS.
Operating temperature: -30~+55°C.
Dimensions: 14 x 60 x 4 mm.
Color: white, black.
Weight: 13g.


Warranty: 24 months.
