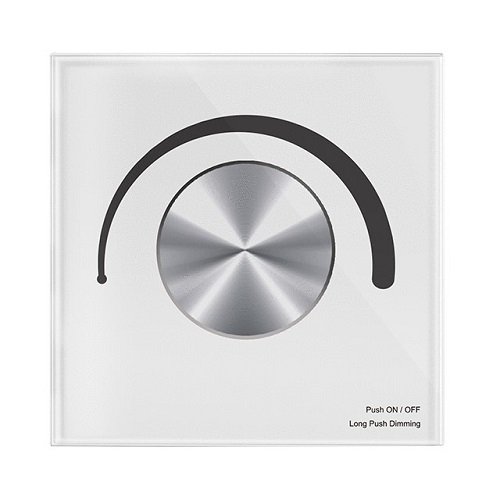

Skydance Rotary Panel Triac Dimmer TS-K(WT), Wi-Fi, Tuya

Rotary panel TRIAC light dimmer 100-240V AC 1x 1.5A, for single-color LED strips, incandescent and halogen lamps, 1 channel, with mechanical knob, supports control of 50 lighting levels.


Features:
TS-K(WT) – is a smart Wi-Fi dimmer with an elegant glass panel and a rotary control knob. It allows smooth dimming or brightening of the lighting, as well as switching the lights on and off. Compatible with dimmable LED strips/bulbs, incandescent lamps, and halogen lamps.
Supports single-color lighting systems.
The rotary knob allows convenient switching on/off and brightness adjustment in 50 levels.
A long press on the knob enables fine brightness control in 256 levels.
The controller operates via Wi-Fi with the Tuya Smart app, allowing users to easily manage their lighting with a smartphone. Functions include delayed on/off, timer activation, and lighting scene creation and editing.
The preferred dimming mode can be selected – leading edge or trailing edge – using the DIP switch.
The minimum brightness level can be set with a button press, while the light on/off transition time can be configured up to 3 seconds.
Equipped with TRIAC control function.
The controller also works with popular voice assistants – Amazon Alexa, Google Assistant, as well as Tmall Genie and Xiaodu.
It is also compatible with the Philips HUE system (when connected to the Philips HUE bridge, it can be controlled via the Philips HUE app).
Luxurious design with a glass panel and a silver-colored knob. Mounted on the wall like a standard switch.
The dimmer is universal and can work with various LED controllers.
Protection against overload and overheating.


Specifications:
Product model: TS-K(WT).
Number of channels: 1.
Controlled lighting systems: single color.
Input signal: Wi-Fi 2.4GHz.
RF distance: 15m (barrier-free space).
Input voltage: 100-240V AC.
Output voltage: 100-240V AC.
Output current: 1.5A.
Power: 150-360W.
Dimming range: 0-100%.
Buttons: 1 (rotate and press) knob.
APP: Tuya Smart / Smart Life, Philips HUE (Android, iOS).
Works with Amazon Alexa & Google Assistant.
Safety class: IP20 (not waterproof).
Certificates: CE, RoHS.
Operating temperature: -30~+55°C.
Dimensions: 86 x 86 x 48 mm.
Color: white.
Weight: 234g.


Warranty: 24 months.
