| Peripheral (molex) power connectors (4-pin): | 1 |
| 80 plus certification: | 80 PLUS Gold |
| Cabling type: | Fully-Modular |
| Number of pata power connectors: | 2 |
| Unit box length: | 0.275 |
| Unit calculated volume: | 0.007503 |
| Mean time between failures (mtbf): | 100000 |
| Atx version: | 3.1 |
| Cables included: | AC,CPU,PCIe,Peripheral (Molex) to SATA 3.3,SATA |
| Operating temperature (t-t): | 0 - 50 |
| Cooling type: | Active |
| Purpose: | PC |
| Power supply unit (psu) form factor: | ATX |
| Unit box width: | 0.115 |
| Unit box height: | 0.185 |
| Unit calculated weight: | 3.1 |

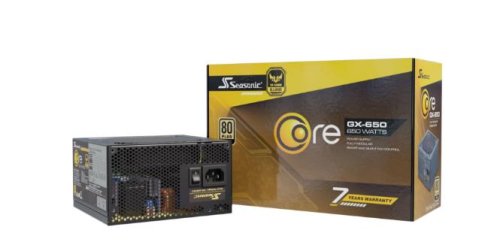

| Model name: | CORE GX |
| Vendor homepage: | https://seasonic.com/core-gx-atx-3-2024/ |
| Units per shipping box: | 5 |
| Description: | The updated Seasonic CORE GX ATX3 series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000 W to 650 W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic’s Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic’s 7-year worldwide manufacturer’s warranty.
New Seasonic OptiSink Design The overall quality and reliability of the new CORE GXATX 3 Series has been greatly improved by a brand-new PCB (Printed Circuit Board) layout and the im |
| Input current: | 9 |
| Max output current (+12v): | 54 |
| Max output current (+3.3v): | 20 |
| Max output current (+5v): | 20 |
| Combined power (+5vsb): | 15 |
| Combined power (-12v): | 3.6 |
| Combined power (+3.3v): | 100 |
| Ac input frequency: | 50/60 |
| Ac input voltage: | 100 - 240 |
| Combined power (+12v): | 648 |
| Fan diameter: | 120 |
| Number of fans: | 1 |
| On/off switch: | Jā |
| Product colour: | Black |
| Max output current (+5vsb): | 3 |
| Max output current (-12v): | 0.3 |
| Power protection features: | Over current/Over power/Over total voltage/Over voltage/Short circuit/Under voltage |
| Total power: | 650 |
| Certification: | BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA |
| Depth: | 140 |
| Height: | 86 |
| Width: | 150 |
| Package type: | Box |
| Summary: | Seasonic Nicht kategorisiert. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex) to SATA 3.3, SATA |
