| Pci express power connectors (6+2 pin): | 2 |
| Power protection features: | Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under voltage |
| Max output current (+5vsb): | 2.5 |
| Unit box width: | 0.1 |
| Width: | 150 |
| Number of fans: | 1 |
| Unit box height: | 0.19 |
| Mean time between failures (mtbf): | 100000 |
| Power supply unit (psu) form factor: | ATX |
| Purpose: | PC |
| Unit calculated weight: | 2.1 |
| Product colour: | Black |
| Ac input voltage: | 100 - 240 |

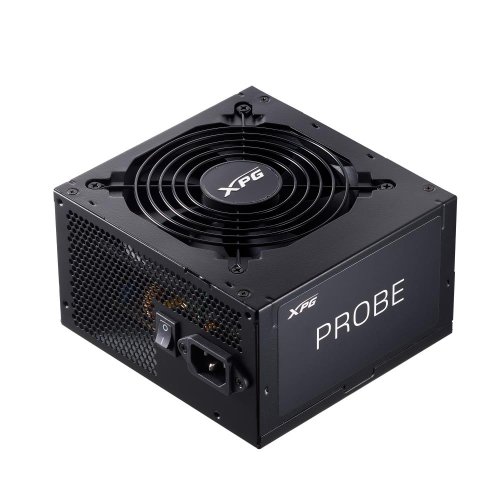

| Summary: | XPG PROBE 700 BRONZE Power Supply. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM |
| Input current: | 10 |
| Model name: | PROBE BRONZE Power Supply |
| Ac input frequency: | 47 - 63 |
| 80 plus certification: | 80 PLUS Bronze |
| Vendor homepage: | https://www.xpg.com/en/xpg/pc-components-probe-bronze?tab=desc# |
| Max output current (+5v): | 17 |
| Peripheral (molex) power connectors (4-pin): | 2 |
| Weight: | 1526.6 |
| Total power: | 700 |
| Atx power connector (24-pin): | Jā |
| Bearing technology: | Sleeve |
| Max output current (+3.3v): | 19 |
| Unit box length: | 0.26 |
| Max output current (+12v): | 54 |
| Cooling type: | Active |
| Fan diameter: | 120 |
| Max output current (-12v): | 0.3 |
| Power factor: | 0.99 |
| Power factor correction (pfc) type: | Active |
| Number of sata power connectors: | 5 |
| Unit calculated volume: | 0.006153 |
| Units per shipping box: | 6 |
| Description: | VIABLE, APPLIABLE, & RELIABLE With up to 87% efficiency at 50% load and a 120mm low-noise fan featuring an intelligent curve, XPG PROBE is designed to deliver stable and reliable power to your system!
Enhanced Safety in Operation Unlike most Bronze power supply units, XPG PROBE is ATX v2.52 compliant, enhancing overall reliability and providing safer operation for your current and future hardware.
Compact Size for Easy Installation With a compact 140mm length, XPG PROBE allows for easier installation in mainstream PC cases and reduced cable clutter.
Intelligent Fan-Curve Design The 120mm low-noise sleeve-bearing fan, featuring an intelligent curve design, keeps the power supply cool without excessive noise, thus reducing power consumption for cooling and improving overall energy efficiency.
Long, Reliable Lifespan XPG PROBE comes with premium capacitors with a 105°C rating, offering greater reliability, premium efficiency, and a |
| Atx version: | 2.52 |
| Fan speed: | 2160 - 2640 |
| Cabling type: | Non-Modular |
| Eps power connector (4+4 pin): | Jā |
| Motherboard power connector: | 20+4 pin ATX |
| Operating temperature (t-t): | 0 - 40 |
| Certification: | CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM |
| Depth: | 140 |
| Height: | 86 |
| Units per pallet: | Nav |
