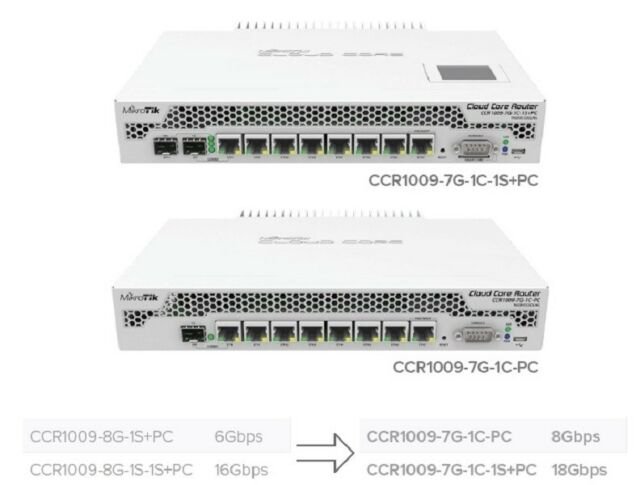

MikroTik CCR1009-7G-1C-PC L6 9xCore 1GB RAM, 7xGig LAN, 1xSFP combo Rack 19

MikroTik CCR1009-7G-1C-PC L6 9xCore 1GB RAM, 7xGig LAN, 1xSFP combo Rack 19

Information about the product

This product is not available in leasing.




Delivery costs:
In our officefor free
Riga5.69 EUR
Riga district7.11 EUR
Regional centers8.54 EUR
Rest of the Latvia8.54 EUR
3.56 EUR
340.00


Price to 2026-07-14
Add Products
Gallery

Apraksts

The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.

Important changes:

No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.

Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.

100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.

More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.

This unit is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so its completely silent. It’s powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.

Specifications

Details
Product code CCR1009-7G-1C-PC
Architecture TILE
CPU TLR4-00980
CPU core count 9
CPU nominal frequency 1 GHz
IPsec hardware acceleration Yes
Dimensions 272 x 190 x 44 mm
RouterOS license 6
Operating System RouterOS
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
Suggested price $425.00

Powering

Details
PoE in Passive PoE
PoE in input Voltage 18-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 18-57 V
Max power consumption 30 W
Max power consumption without attachments 25 W
FAN count Passive

Ethernet

Details
10/100/1000 Ethernet ports 7
Ethernet Combo ports 1

Peripherals

Details
Serial port RS232 + Header
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1

Other

Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
