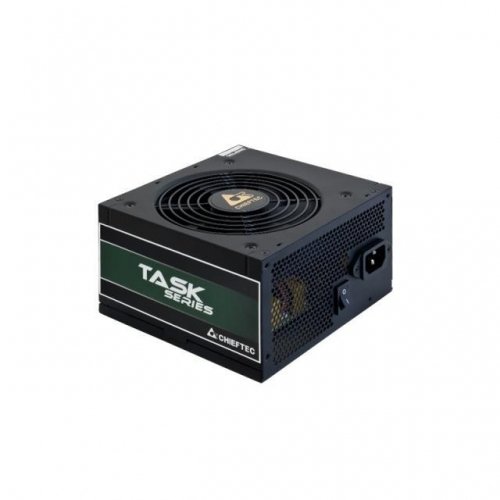

Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS BRONZE|PFC Active|TPS-700S

This product is not available in leasing.

Delivery costs:

In our office	for free
Riga	5.69 EUR
Riga district	7.11 EUR
Regional centers	8.54 EUR
Rest of the Latvia	8.54 EUR
	3.56 EUR

52.65

Price to 2026-06-24
In stock: 50
Last time product information was updated:
2026-06-24 07:36

Quantity:

Gallery

Apraksts

ATX 2.3|700 Watts|Cooling System 12cm fan|80 PLUS BRONZE|PFC Active

Parameters - Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS BRONZE|PFC Active|TPS-700S

Weight:	1740
Width:	150
Unit box height:	0.185
Depth:	140
Height:	87
Units per shipping box:	4
Summary:	Chieftec Task TPS-700S. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: ErP, CE, CB, EAC, TUV
Units per pallet:	Nav
Description:	TPS-700S The CHIEFTEC Task Series PSUā€™s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases. 80PLUS Bronze certified efficiency 650mm long cables for maximum case compatibility All modern protection and safety features included
Vendor homepage:	https://www.chieftec.eu/products-detail/180/TASK_SERIES/248/TPS-700S
Total power:	700
Atx power connector (20+4 pin):	Jā
Cabling type:	Non-Modular
Eps power connector (4+4 pin):	Jā
Motherboard power cable length:	650
Motherboard power connector:	20+4 pin ATX
Number of sata power connectors:	6
Pci express power cable length:	500
Pci express power connectors (6+2 pin):	2
Peripheral (molex) power cable length:	150/500
Peripheral (molex) power connectors (4-pin):	3
Sata power cable length:	150/500
80 plus certification:	80 PLUS Bronze
Power supply unit (psu) form factor:	ATX
Purpose:	PC
Supported motherboard form factors:	ATX
Fan diameter:	120
Number of fans:	1
Product colour:	Black
Package type:	Box
Package weight:	2150
Harmonized system (hs) code:	84733020
Eps cable length:	650
Unit calculated volume:	0.006169
Ac input frequency:	47 - 63
Unit box length:	0.235
Ac input voltage:	100 - 240
Unit box width:	0.105
Unit calculated weight:	4.31
Combined power (+12v):	648
Combined power (+5vsb):	12.5
Combined power (-12v):	3.6
Input current:	10
Max output current (+12v):	54
Max output current (+3.3v):	19
Max output current (+5v):	17
Max output current (+5vsb):	2.5
Max output current (-12v):	0.3
Power factor:	0.9
Power factor correction (pfc) type:	Active
Power protection features:	Over voltage/Overheating/Overload/Short circuit/Under voltage
Certification:	ErP, CE, CB, EAC, TUV
Compliance certificates:	RoHS
