| Placement: | Table |
| Unit calculated weight: | 0.267 |
| Units per shipping box: | 20 |

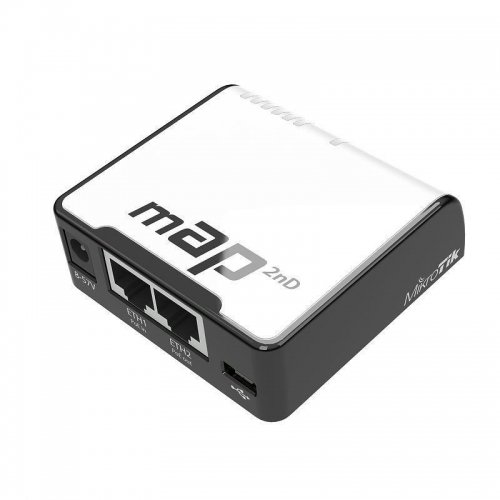

| Description: | The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it. |
| Ethernet lan data rates: | 10/100 |
| Unit box width: | 0.075 |
| Unit calculated volume: | 0.001057 |
| Unit box length: | 0.175 |
| Unit box height: | 0.055 |
| Vendor homepage: | https://mikrotik.com/product/RBmAP2nD |
| Model name: | mAP // RBmAP2nD |
| Cables included: | USB |
| Operating relative humidity (h-h): | -10 - 70 |
| Harmonized system (hs) code: | 85176990 |
| Dc-in jack: | Jā |
| Ethernet lan (rj-45) ports: | 2 |
| Usb 2.0 ports quantity: | 1 |
| Usb connector type: | USB Type-B |
| Output current: | 0.8 |
| Output voltage: | 24 |
| Width: | 68 |
| Ac adapter included: | Jā |
| Height: | 19 |
| Internal memory: | 64 |
| Operating system installed: | Linux |
| Depth: | 68 |
| Flash memory: | 16 |
| Built-in processor: | Jā |
| Antenna gain level (max): | 1.2 |
| Product colour: | Black/White |
| Summary: | Mikrotik mAP. 2.4 GHz, Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: Black, White |
| 2.4 ghz: | Jā |
| 5 ghz: | No |
| Auto mdi/mdi-x: | Jā |
| Networking standards: | IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at |
| Units per pallet: | Nav |
| Power over ethernet (poe): | Jā |
| Internal: | No |
| Led indicators: | Jā |
